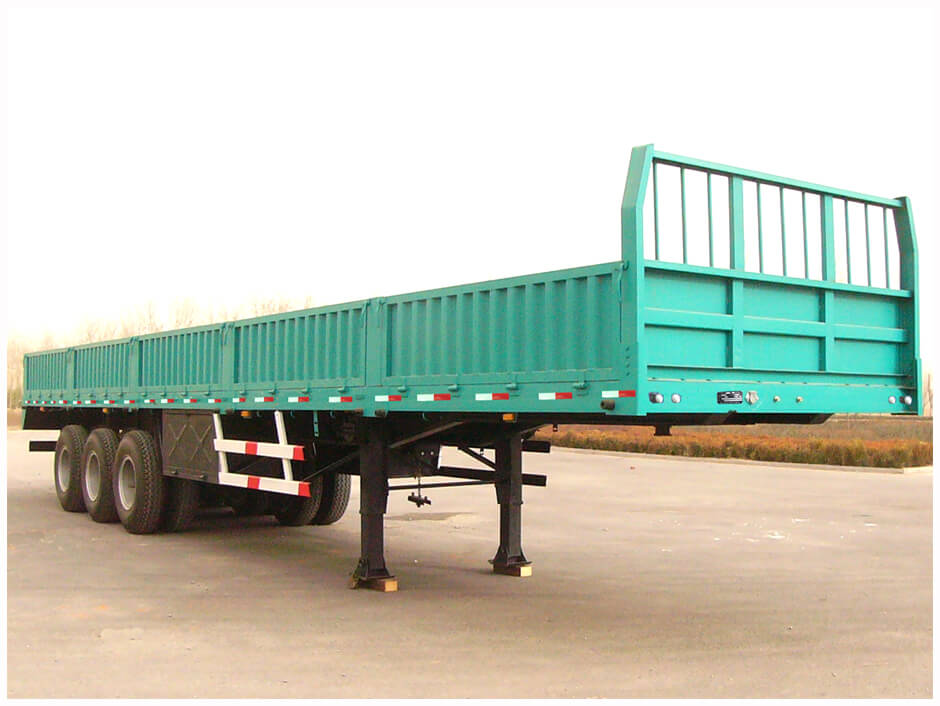

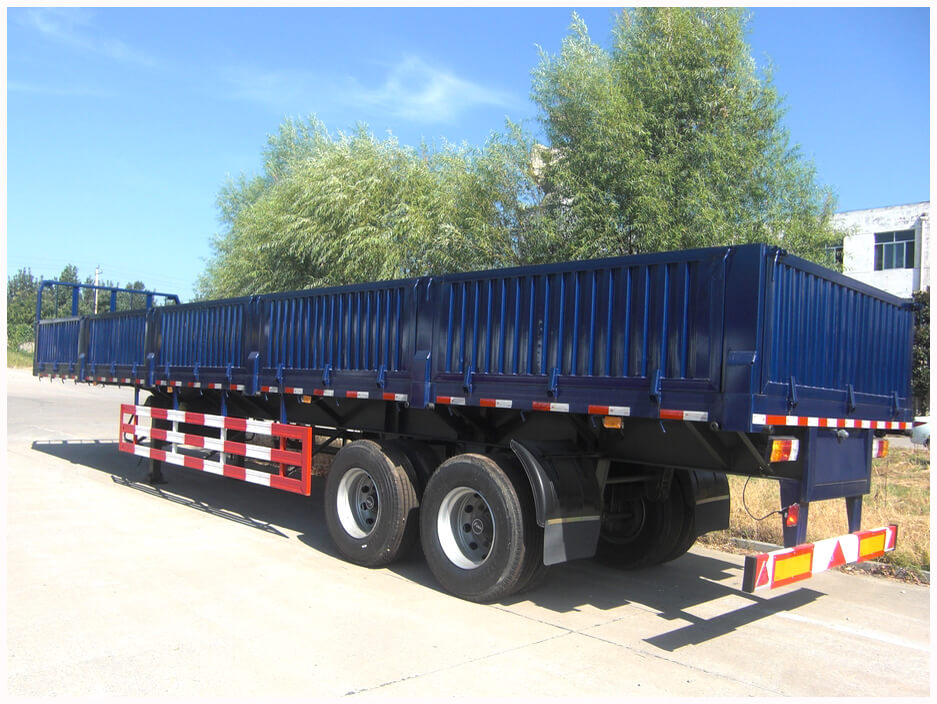

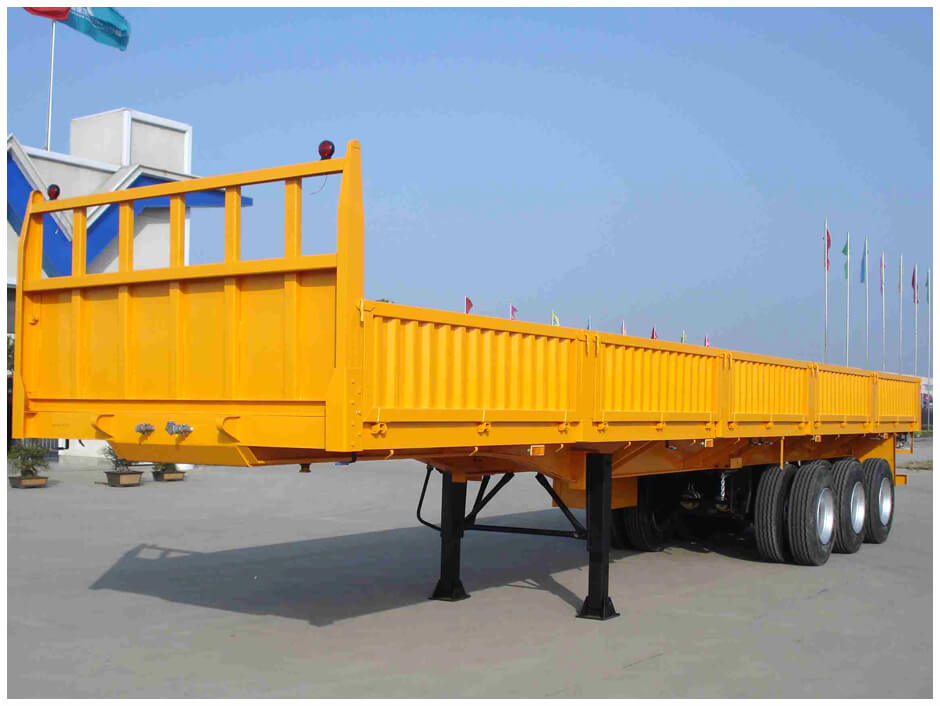

Sidewall Semi Trailer

Loading Capacity:20Tons / 40 Tons / 60 Tons

Overall Dimension:12500x2500x3100 mm

Axle Number:2 Axles / 3 Axles

Kingpin Size:2.0 Inch / 3.5 Inch

  • Professional Service, Competitive Price.
  • Powerful Engine, Advanced Technologies.
  • Stable and Reliable Quality, Great Performance.

Model

Sidewall Semi Trailer

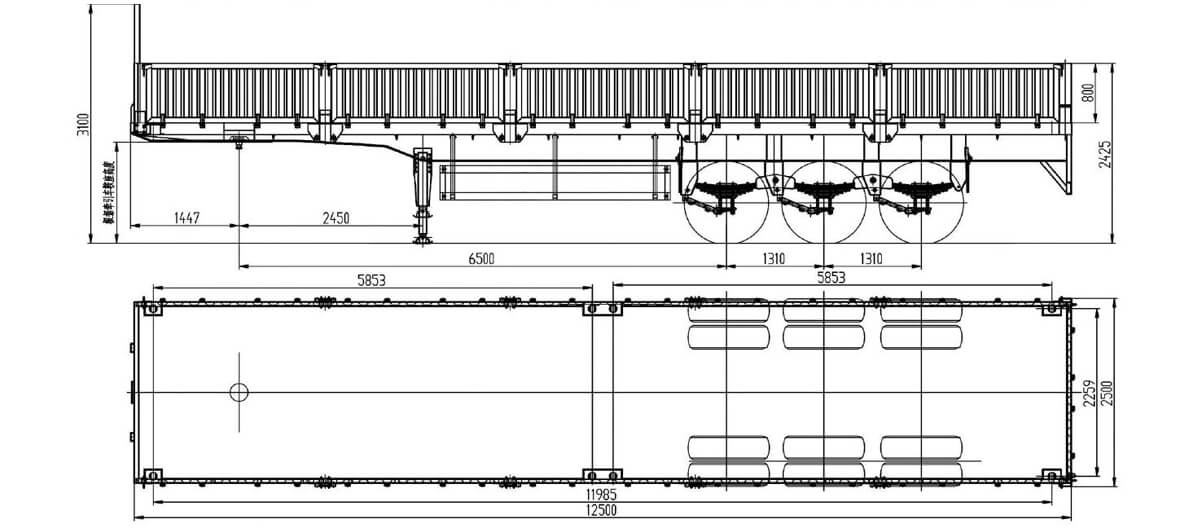

Dimension

12500 x 2500 x 3100mm

Curb Weight

10Tons

Loading Capacity

50 Tons

Sidewall Height

800 mm, demountable

Steel Material

Q345 Mn for steel plate, Q235 for other parts

Kingpin

JOST 2.0 / 3.5 Inch

Landing Gear

JOST 28 Tons

Main Beam

Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm

Side Beam

18mm steel channel

Suspension

America type mechanical suspension

Spring Leaf

90mm x 13mm x 10 layers

Axles

FUWA Brand, 13Tons or 16Tons

Tires

12.00R20 or 315/80R22.5

Brake Chamber

T30/30 + T30 spring brake chamber, one piece of 45L air tanks

Electrical

24V

Tool Box

1000 x 500 x 500 mm
