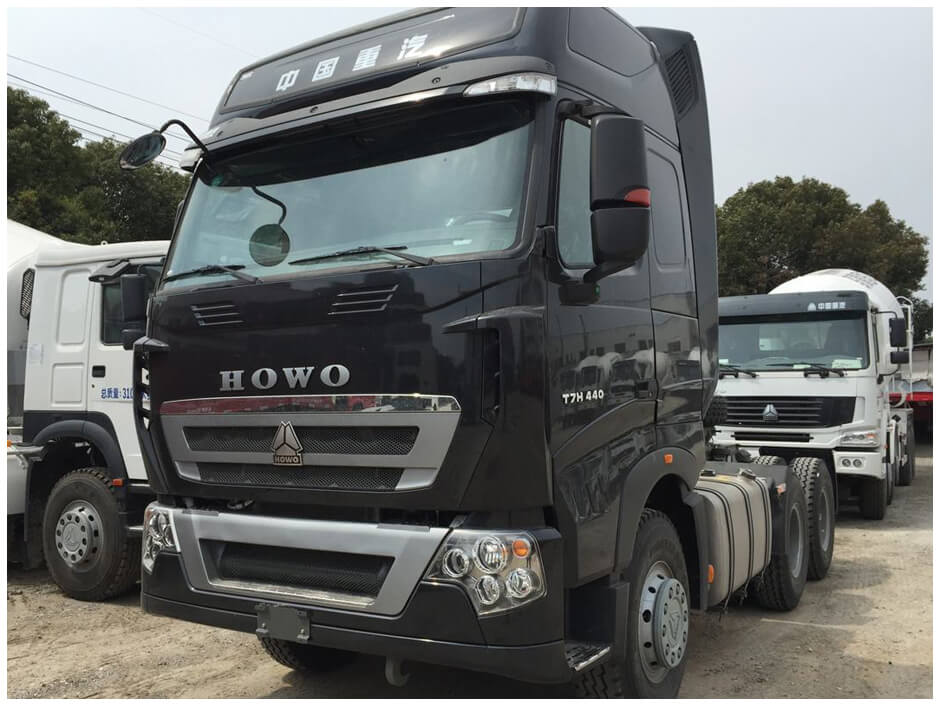

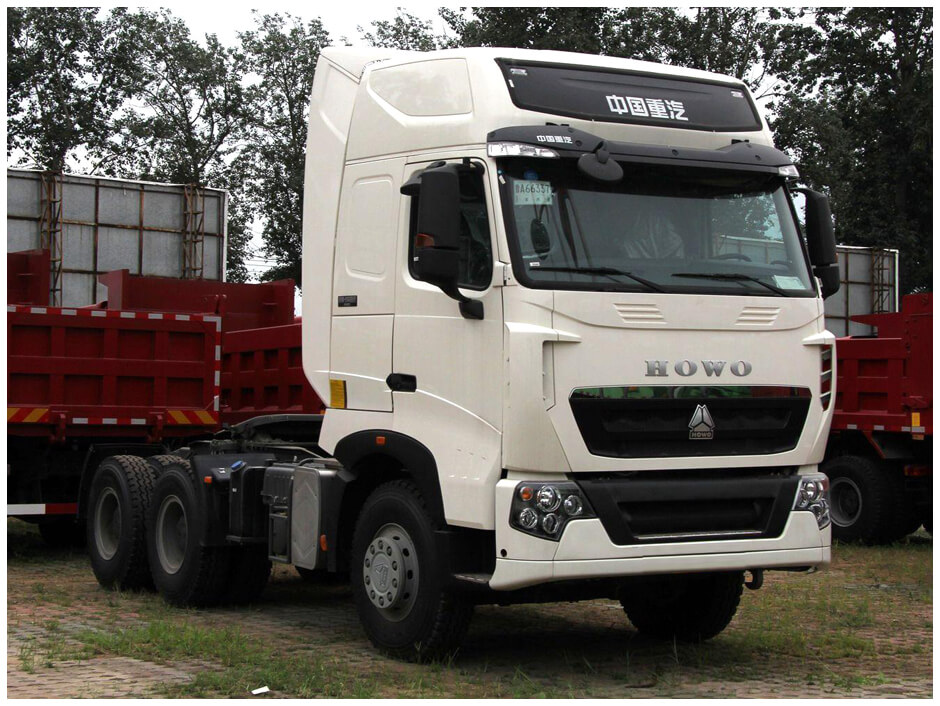

HOWO-T7H Tractor Truck

Driving Type:4x2 / 6x4

Cabin Type:Double Berth

Horse Power:320HP / 440HP / 540HP

Transmission:HW20716, 16F & 2R

  • Professional Service, Competitive Price.
  • Powerful Engine, Advanced Technologies.
  • Stable and Reliable Quality, Great Performance.

Chassis Model

ZZ4257V323HD1

Driving Type

LHD (RHD is optional)

Cabin

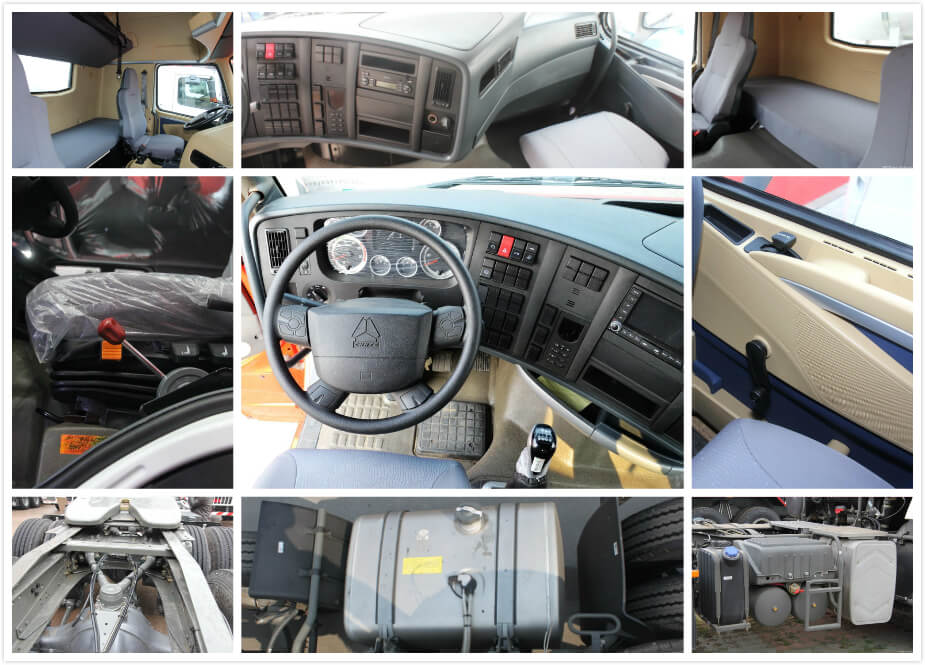

T7H-G, with two sleepers and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

Engine

Engine model: MC11.44-40, 440 HP, MAN technology
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 10.518 L

Transmission

HW20716, 16F & 2R

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance;

Front Axle

HF7, 1x7000 KGS

Steering with doubleT-cross section beam

Rear Axle

MCY13, 2x13000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:4.42

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, one spare tyre

Fuel Tank

400L

Fifth Wheel

90#

Overall Dimension

7100*2550*3800mm
